1200度开启式管式炉/1200℃ Open Type Tube Furnace

文章出处：洛阳西格玛智能电阻炉人气：192 发表时间：2020-03-27

1200度开启式管式炉采用钢电炉丝加热，温度可达1200℃。炉管可配置为1"或2"的高纯石英炉管，炉管两端已安装一对不锈钢法兰（法兰上已安装机械压力表、不锈钢截止阀和宝塔嘴接头）。1200度开启式管式炉允许样品在真空和气体保护下进行烧结。

The 1200 degree open tube furnace is heated by Shougang electric wire, and the temperature can reach 1200 ℃. The furnace tube can be configured as 1 "or 2" high-purity quartz furnace tube, and a pair of stainless steel flanges (mechanical pressure gauge, stainless steel stop valve and pagoda nozzle joint are installed on the flange) have been installed on both ends of the furnace tube. The 1200 degree open tubular furnace allows samples to be sintered under vacuum and gas protection.

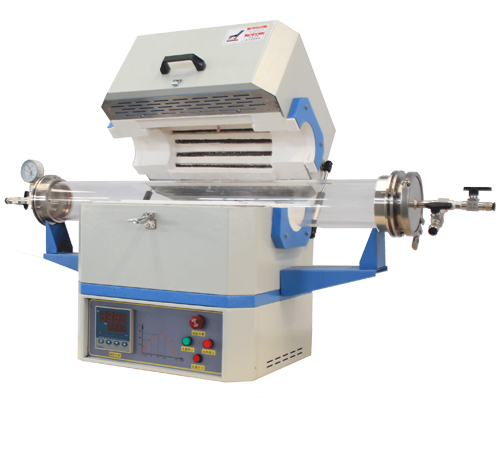

1200度开启式管式炉

1200度开启式管式炉采用双层壳体结构并带有风冷系统

Double shell structure with air cooling system

炉膛材料采用高纯氧化铝纤维，能较大程度减少能量损失

High purity alumina fiber is used as furnace material, which can greatly reduce energy loss

.采用高纯氧化铝作为炉膛材料，炉膛表面涂有高温氧化铝涂层可以提高加热效率和炉膛使用寿命

High purity alumina is used as furnace material, and the furnace surface is coated with imported high temperature alumina coating, which can improve heating efficiency and furnace service life

1200度开启式管式炉特点

1、The stainless steel vacuum flanges with valves and quartz tube are included for immediate use.

标配不锈钢带阀真空法兰和石英管。

2、Can work under vacuum or flowing gas atmospheres

可在真空或气氛下工作

3、Chamber veined with 12 sets of resistance wire, achieve uniform tem. field and longer constance zone.

上下12组加热器密布于圆形炉膛内，温场均匀，恒温区超长

4、Equipped with support frame for flange, reduce the load of tube body

配置法兰支撑架，减小炉体承重

5、Pneumatic spring for opening, which is safer for operator.

气动弹簧支撑结构让操作者安全开启

6、Open type make convenient for operation

开启式结构操作简洁

1200度开启式管式炉技术参数

Power

输入电源

· Furnace input 220V. 50/60 HZ

输入电压 220V 50/60 HZ

Working Temperature

工作温度

· Max. Temperature: 1200 °C (< 1 hr)

额定温度：1200℃(< 1 hr)

· Continuous working temperature: 1100 °C

持续工作温度：1100℃

· Max. Heating Rate: 50°C /min

设计快升温速率：50℃/min

Heating Zone

加热区

· Heating Zone Length: 17.32" ( 440mm)

加热区长度：17.32”(440mm）

· Constant Temperature Zone: 7.87 " (200mm. +/- 1ºC )

恒温区长度：7.87”(200mm)

Temperature Controller

控温方式

· PID automatic control and auto-tune function.

模糊PID控制和自整定调节

· 30 programmable segments for precise thermal processing.

智能化30段可编程控制

· Built-in protection for the over-heated and broken thermocouple.

超温和断偶报警功能

· Temperature Accuracy: +/- 1 °C.

控温精度：+/- 1 °C

· K type thermocouple.

K型热电偶

Heating Elements

加热元件

· Fe-Cr-Al Alloy doped by Mo

电阻丝（掺钼铁铬铝合金）

Processing Tube

炉管

· Fused quartz tube: 25/50/60/80/100 OD x 1000 mm Length is included（optional）

石英管：25/50/60/80/100（外径）*1000（长）mm（管径可选）

· Two tube blocks are included for blocking heat radiation generated from tube center, must be fully inserted into the furnace chamber before heating(quarzt or ceramic optional).

两个管堵阻挡管中心产生的热辐射,必须在加热前塞进炉膛的正确位置（石英货氧化铝管堵可选）

·
Vacuum Flange

· 真空法兰

· KF25 quick clamp flange

两端为KF25快速卡箍法兰

· Can provide water-cooled flange as required

可根据要求提供水冷法兰

Vacuum Pressure

真空压力

· 133torr can be achieved by mechanical pump

机械泵可达133torr（1pa）

· 10^-6 torr can be reached by molecular pump

分子泵可达10^6torr（10^-3pa）

· Please clik the picture below to order vacumm parts

点击下列图片订购真空部件

Dimensions

尺寸

590*380*500mm（L*W*H without tube & flange）

Net weight设备净重

40kgs

Warranty

质保

Two year limited warranty with lifetime support (Consumable parts such as processing tubes, and O-rings are not covered by the warranty, please order replacements at related products below.)

二年质保终身支持（消耗品如炉管，O型圈不在质保范围内）

Compliance

认证

· CE Certified

CE认证

· All electric components ( >24V) are UL / MET / CSA certified

所电器元件（ >24V）符合UL/MET/CSA认证标准

· The furnace is ready to pass TUV(UL61010) or CSA certification at extra cost. （ please click marks below to learn details )

可付费进行TUV(UL61010)或者CSA认证（点击下方标志了解更多详情）
